12593 - 1000 Gallon - 304 S/S Tank - Double Vessel with coils in each Part

ITEM NUMBER: 12593 TANKS - JACKETED S/S ALL SIZES:
1000 GAL 304 S/S TANK -JACKETED - 2 TANKS WITH COILS - MODEL NUMBER: PT1000
SERIAL NUMBER: 71502301

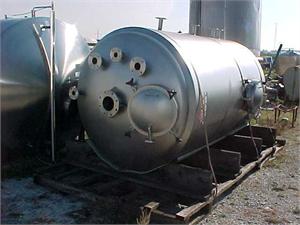

1000 GALLON 304 STAINLESS STEEL TANK - 64 3/4 IN OD
96 IN STRAIGHT SIDE - TANK IS JACKETED 15 PSI ON SIDES WITH S/S OUTER JACKET-TWO 18 IN MANWAYS - ONE ON TOP ONE ON SIDE - THIS IS 2 SEPARATE TANKS - TOP TANK HAS 200 FT 2 IN.065 WALL TUBING - BOTTOM HAS 50 FT OF 15 PSI T304 S/S TUBING - TANK HAS 2 IN CERAMIC INSULATION-6 IN 150# RFSO FLANGE FOR CENTER MOUNTED AGITATOR - (NO AGITATOR) - TOP TANK HAS A CAPICITY OF 800 GALLON AND THE BOTTOM TANK HAS 300 GALLON - TOP TANK DRAINS ON THE SIDE OF THE TANK - BOTTOM DRAINS AT BOTTOM -
