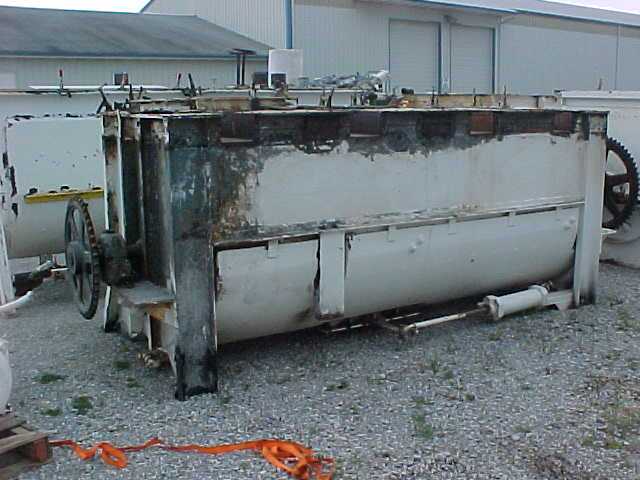

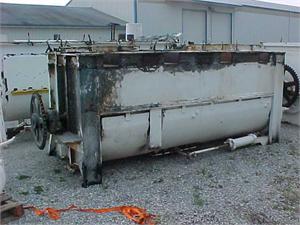

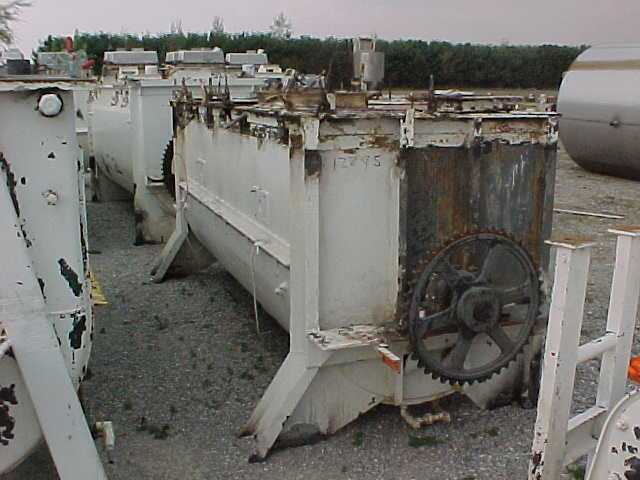

12995 - 100 Cu Ft Ribbon Mixer - Carbon Steel - Ribbon & Paddles - Jacketed - 20 HP

ITEM NUMBER: 12995 MIXERS- RIBBON- CARBON STEEL:
100 CU FT RIBBON MIXER - RIBBON & PADDLES - JACKETED 20 HP
100 CU FT CARBON STEEL RIBBON BLENDER - SINGLE RIBBON 2 IN X 5/16 IN WIDE - FOURTEEN 5IN X 12IN PADDLES ALSO RIBBONS AND PADDLES BOLTED ON - 3 IN CENTER SHAFT - AIR OPERATED DISCHARGE GATE 26IN LONG 15 IN WIDE WITH 2 IN FLANGE CENTER BOTTOM - INSIDE CHAMBER 122 IN LONG 42 1/2 IN WIDE - 4 FT DEEP - 15 PSI JACKET ON LOWER 1/2 OF CHAMBER - TOP COVER WITH INLET 16 IN X 16 IN FLANGED FALK REDUCER 25 HP DRIVE 3/60/220/440/1770 RPM OVERALL: 12 1/2 FT LONG - 55 IN WIDE - 5 FT HIGH -
