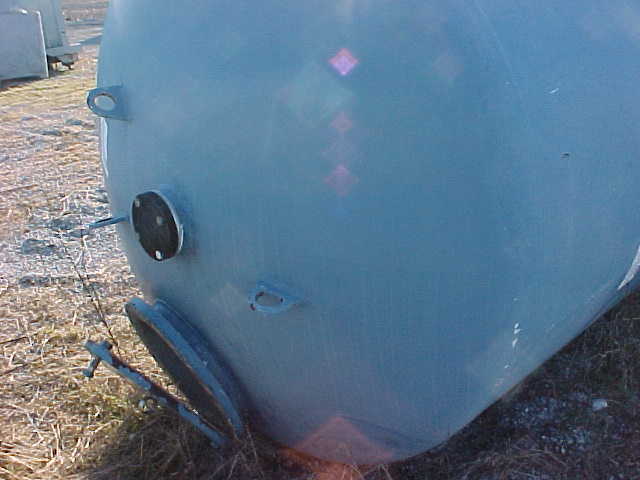

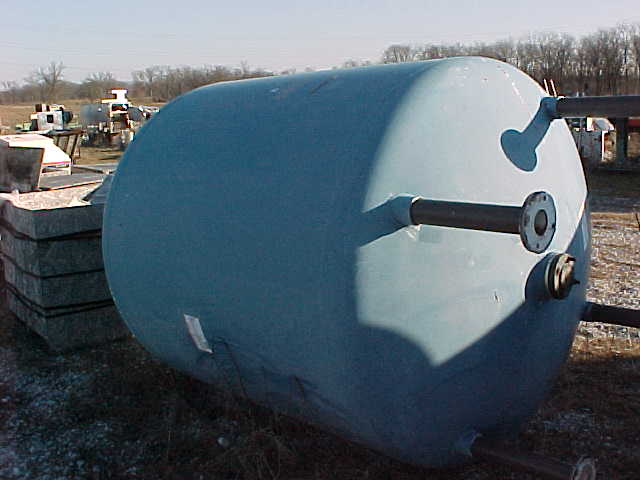

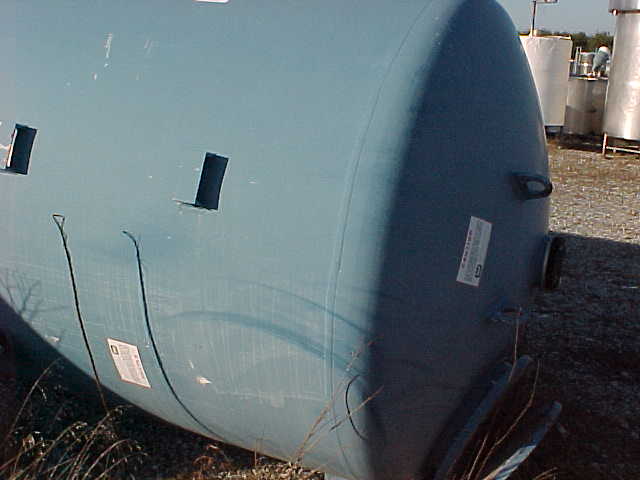

10853 - 1100 Gal Carbon Steel Tank - Dished Top and Bottom

ITEM NUMBER: 10853 TANKS - CARBON STEEL:

1100 CARBON STEEL TANK - EPOXY LINED - DISHED TOP& BOTTOM
USED: 1100 GALLON CARBON STEEL TANK, MADE BY WATUBO-TEC
INC.IN 1987. DESIGNED FOR 100 PSI @ 450 F. HEAD THICK-

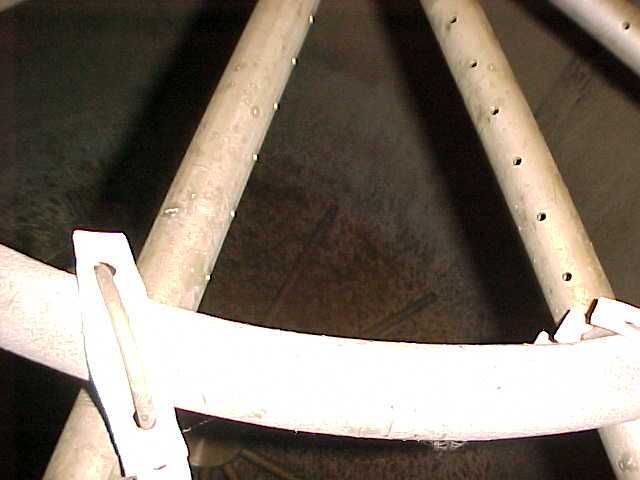

NESS IS .500 AND SHELL .312. THERE ARE S/S SPRAY RODS
IN THE BOTTOM AND TOP OF TANK WITH ACCESS THRU THE MAN-
HOLE AND THRU OPENING ON THE BOTTOM AND TOP. THERE IS A
7” DISCHARGE IN BOTTOM CENTER OF TANK. THE ARE FOUR
C/S LEGS - BOTTOM CENTER DRAIN 1 FT OFF FLOOR - VESSEL

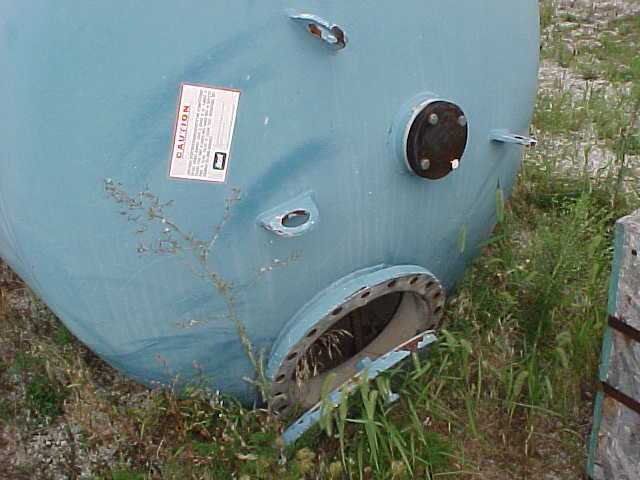

IS LINED WITH 2 PART EPOXY - TOP MANWAY IS 17 IN DIA.
TOP INLET 7 IN DIA. STRAIGHT SIDE 67 IN - DISHED TOP
AND BOTTOM — 6 FT DIAMETER -
