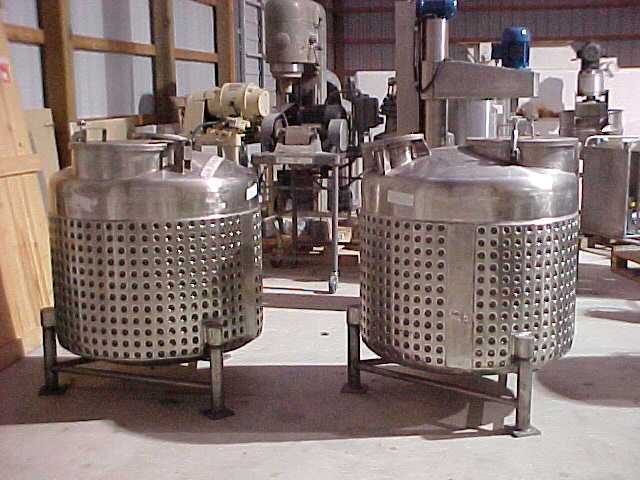

12928 - 150 Gallon Jacketed Tank - S/S - Closed Top - Manway

150 GALLON STAINLESS STEEL TANK - 38 IN DIAMETER

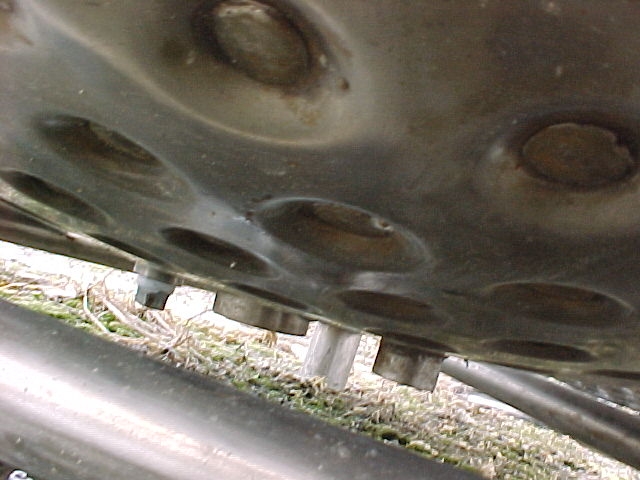

30 IN STRAIGHT SIDE - DIMPLE JACKET ON BOTTOM AND 2FT
UP ON SIDES - 15 PSI (NOT MARKED) - TWO BOTTOM DRAINS
1 7/8 IN CENTER 1 IN OFF CENTER -INSIDE THREADS -

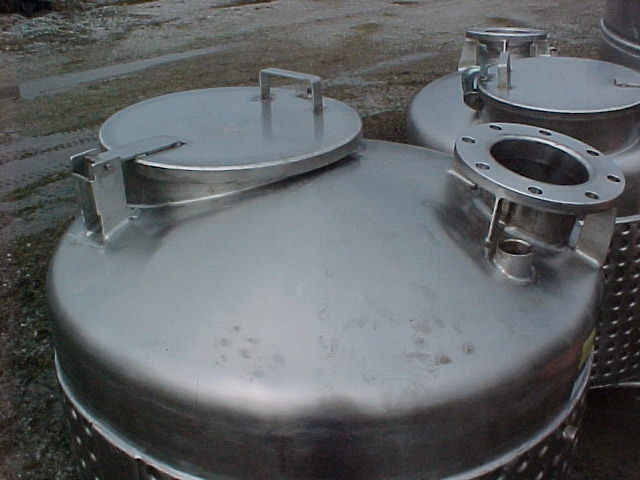

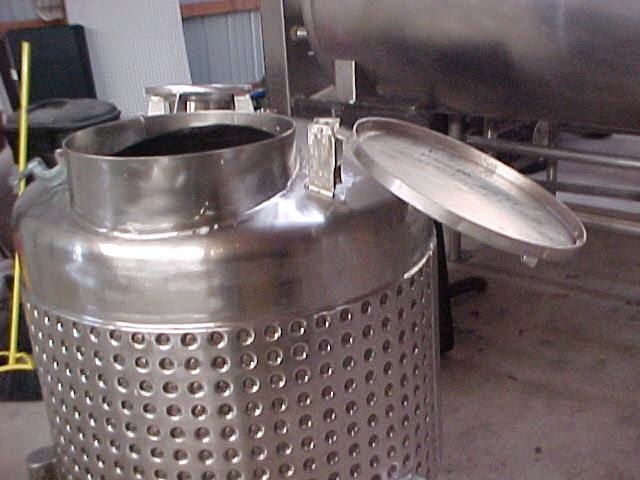

17 IN MANWAY ON TOP - FLANGE FOR AGITATOR 11 IN DIA
WITH 6 1/2 IN OPENING AND 8-7/8 IN BOLT HOLES ON 3 1/2
IN CENTERS - 1 7/8 IN OPENING ON TOP - THREE 2 1/2 IN

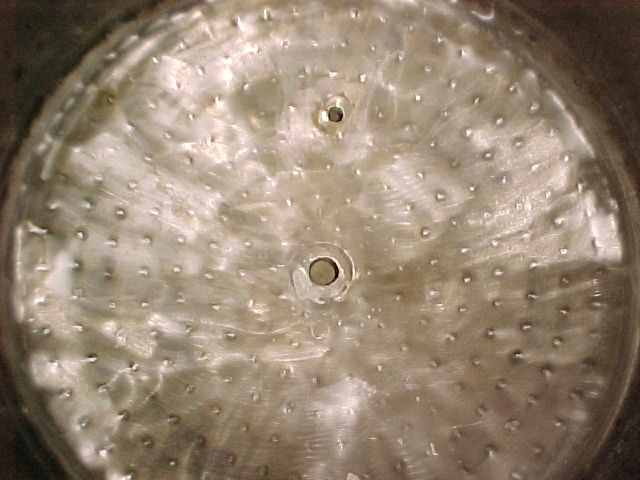

LEGS - DRAINS AR~ 5 IN FROM FLOOR - DISHED TOP AND
BOTTOM - OVERALL: 50 IN HIGH - 46 IN SQUARE -
