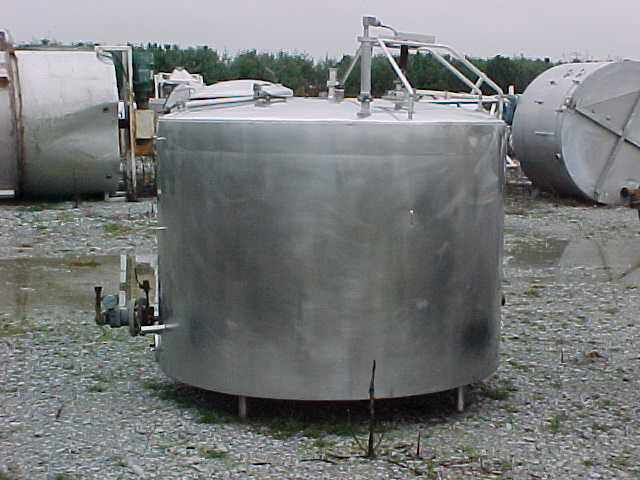

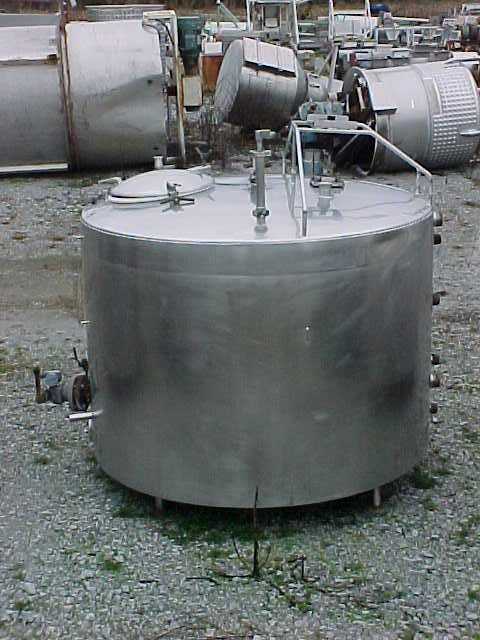

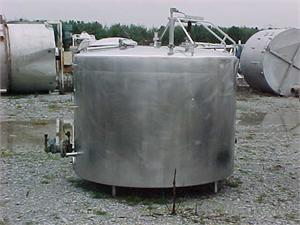

500 Gallon Mueller Processor - 150 PSI Jacket

ITEM NUMBER: 10269 PROCESSORS:
500 GALLON MUELLER PROCESSOR - 150 PSI JACKET S/S MODEL NUMBER: JCPR-500
UNIT IS A MUELLER PROCESSOR WITH A 500 GALLON CAPICITY JACKET IS DESIGNED FOR 150 PSI AND IS BOTTOM AND SIDES 2 IN BOTTOM SIDE DRAIN - 4 ZONE JACKET - CLOSED

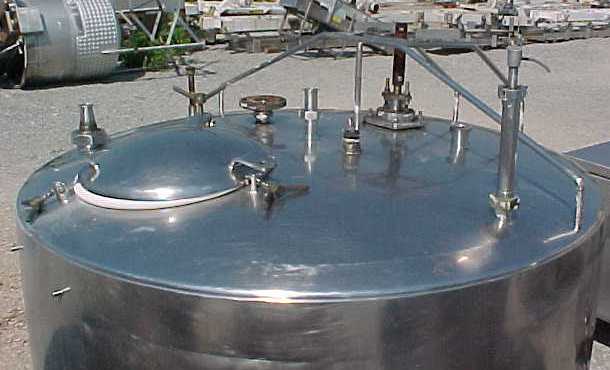

TOP WITH MANHOLE - ASME CODED - 6 IN HIGH LEGS - BAFFLE INSIDE-AGITATOR DRIVE- 1 1/2 HP 3/60/230/460/ GEARHEAD MOTOR ( NO MOTOR AVAILABLE )

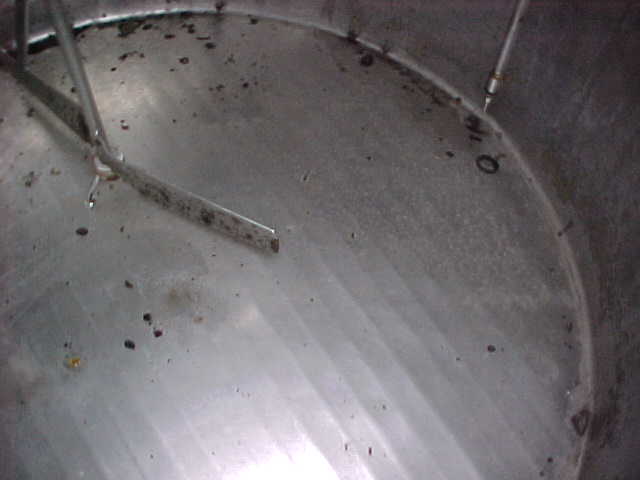

AGITATOR SHAFT IS 1 1/2 IN DIAMETER AND AGITATOR BLADE IS 2FT LONG - UNIT IS 6FT DIAMETER AND 5FT HIGH ************BLUEPRINT AVAILABLE****************
